Switching power supplies and LED drivers suitable for all types of industrial and lighting sectors
GS-160-X (GS-160-X)
DESCRIPTION:
Power supply must be fundamental in all kinds of electronic device. Choosing carefully the power supply with the specific requirements of power, reliability and resistance means putting safety in an essential part of the system by reducing the mínimum risk factors and improving performance. The power of the Desk series are suitable for applications where can be exposed on powder or where is needed mayor electrical safety.
TECHNICAL SPECIFICATIONS:
Voltage input: 90~264VAC - 135~370VDC
Power: 160 watt
Models constant voltage output: 12 - 15 - 20 - 24 - 48VDC
Model output current (GS-160-12): 11,5A @ 12VDC
Model output current (GS-160-15): 9,6A @ 15VDC
Model output current (GS-160-20): 8A @ 20VDC
Model output current (GS-160-24): 6,67A @ 24VDC
Model output current (GS-160-48): 3,34A @ 48VDC
Dimensions: 175mm x 72mm x H 35mm
IP protection: IP44
Certifications: CE - RoHS - FCC - UL - TUV - CUL - BSMI - CCC - PSE - CB
Protection: Short circuit, overload, over voltage, over temperature, recover automatically after fault condition are removed.
Others:
DATA SHEET:


Power supply must be fundamental in all kinds of electronic device. Choosing carefully the power supply with the specific requirements of power, reliability and resistance means putting safety in an essential part of the system by reducing the mínimum risk factors and improving performance. The power of the Desk series are suitable for applications where can be exposed on powder or where is needed mayor electrical safety.
TECHNICAL SPECIFICATIONS:
Voltage input: 90~264VAC - 135~370VDC
Power: 160 watt
Models constant voltage output: 12 - 15 - 20 - 24 - 48VDC
Model output current (GS-160-12): 11,5A @ 12VDC
Model output current (GS-160-15): 9,6A @ 15VDC
Model output current (GS-160-20): 8A @ 20VDC
Model output current (GS-160-24): 6,67A @ 24VDC
Model output current (GS-160-48): 3,34A @ 48VDC
Dimensions: 175mm x 72mm x H 35mm
IP protection: IP44
Certifications: CE - RoHS - FCC - UL - TUV - CUL - BSMI - CCC - PSE - CB
Protection: Short circuit, overload, over voltage, over temperature, recover automatically after fault condition are removed.
Others:
- No load power consumption <0,5 watt.
- Automatic input voltage adjustment.
- Plug out 5,5mm.
- Enclosed plastic case.
- Power factor correction circuit PFC.
DATA SHEET:


MEANWELL POWER SUPPLY AC/DC 160 WATT - SINGLE OUTPUT
RSP-200-X (RSP-200-X)
DESCRIPTION:
Power supply must be fundamental in all kinds of electronic device. Choosing carefully the power supply with the specific requirements of power, reliability and resistance means putting safety in an essential part of the system by reducing the mínimum risk factors and improving performance. Meanwell Compact serie with low profile are made with miniature electronic components and reduce the dimention of installation. Fan less and super silent.
TECHNICAL SPECIFICATIONS:
Voltage input: 85~264VAC - 120~370VDC
Power: 200 watt
Models constant voltage output: 2,5 - 3,3 - 4 - 5 - 7,5 - 12 - 13,5 - 15 - 24 - 27 - 36 - 48VDC
Model output current (RSP-200-2.5): 40A @ 2,5VDC
Model output current (RSP-200-3.3): 40A @ 3,3VDC
Model output current (RSP-200-4): 40A @ 4VDC
Model output current (RSP-200-5): 40A @ 5VDC
Model output current (RSP-200-7.5): 26,7A @ 7,5VDC
Model output current (RSP-200-12): 16,7A @ 12VDC
Model output current (RSP-200-13,5): 14,9A @ 13,5VDC
Model output current (RSP-200-15): 13,4A @ 15VDC
Model output current (RSP-200-24): 8,4A @ 24VDC
Model output current (RSP-200-27): 7,5A @ 27VDC
Model output current (RSP-200-36): 5,56A @ 36VDC
Model output current (RSP-200-48): 4,2A @ 48VDC
Dimensions: 199mm x 119mm x H 30mm
IP protection: IP20
Certifications: CE - RoHS - FCC - UL - TUV - EMI
Protection: Short circuit, overload, over voltage, over temperature, recover automatically after fault condition are removed.
Others:
DATA SHEET:



Power supply must be fundamental in all kinds of electronic device. Choosing carefully the power supply with the specific requirements of power, reliability and resistance means putting safety in an essential part of the system by reducing the mínimum risk factors and improving performance. Meanwell Compact serie with low profile are made with miniature electronic components and reduce the dimention of installation. Fan less and super silent.
TECHNICAL SPECIFICATIONS:
Voltage input: 85~264VAC - 120~370VDC
Power: 200 watt
Models constant voltage output: 2,5 - 3,3 - 4 - 5 - 7,5 - 12 - 13,5 - 15 - 24 - 27 - 36 - 48VDC
Model output current (RSP-200-2.5): 40A @ 2,5VDC
Model output current (RSP-200-3.3): 40A @ 3,3VDC
Model output current (RSP-200-4): 40A @ 4VDC
Model output current (RSP-200-5): 40A @ 5VDC
Model output current (RSP-200-7.5): 26,7A @ 7,5VDC
Model output current (RSP-200-12): 16,7A @ 12VDC
Model output current (RSP-200-13,5): 14,9A @ 13,5VDC
Model output current (RSP-200-15): 13,4A @ 15VDC
Model output current (RSP-200-24): 8,4A @ 24VDC
Model output current (RSP-200-27): 7,5A @ 27VDC
Model output current (RSP-200-36): 5,56A @ 36VDC
Model output current (RSP-200-48): 4,2A @ 48VDC
Dimensions: 199mm x 119mm x H 30mm
IP protection: IP20
Certifications: CE - RoHS - FCC - UL - TUV - EMI
Protection: Short circuit, overload, over voltage, over temperature, recover automatically after fault condition are removed.
Others:
- PFC power factor correction circuit.
- Automatic input voltage adjustment.
- Screw terminals.
- Free air convection, super silent.
- Metal housing with height <30 mm.
DATA SHEET:



POWER SUPPLY AC/DC MEAN WELL 200 WATT COMPACT SERIE - SINGLE OUTPUT - FAN LESS
LRS-150-X (LRS-150-X)
DESCRIPTION:
Power supply must be fundamental in all kinds of electronic device. Choosing carefully the power supply with the specific requirements of power, reliability and resistance means putting safety in an essential part of the system by reducing the mínimum risk factors and improving performance. Mean Well LRS series power supplies are very strong, indicated in machines where there are high mechanical stress, high temperatures up to 70°C, and input voltage 110-220 volts with high peak voltages. Mean Well LRS serie with low profile are made with miniature electronic components and reduce the dimention of installation. Fan less and super silent.
TECHNICAL SPECIFICATIONS:
Voltage input: 85~264VAC - 120~373VDC
Power: 150 watts
Models constant voltage output: 12 - 15 - 24 - 36 - 48VDC
Model output current (LRS-150-12): 12,5A @ 12VDC
Model output current (LRS-150-15): 10A @ 15VDC
Model output current (LRS-150-24): 6,5A @ 24VDC
Model output current (LRS-150-36): 4,3A @ 36VDC
Model output current (LRS-150-48): 3,3A @ 48VDC
Dimensions: 159mm x 97mm x H 30mm
IP protection: IP20
Certifications: CE - RoHS - FCC - UL - TUV - EMC - CB
Protection: Short circuit, overload, over voltage, over temperature, recover automatically after fault condition are removed.
Others:
DATA SHEET:




Power supply must be fundamental in all kinds of electronic device. Choosing carefully the power supply with the specific requirements of power, reliability and resistance means putting safety in an essential part of the system by reducing the mínimum risk factors and improving performance. Mean Well LRS series power supplies are very strong, indicated in machines where there are high mechanical stress, high temperatures up to 70°C, and input voltage 110-220 volts with high peak voltages. Mean Well LRS serie with low profile are made with miniature electronic components and reduce the dimention of installation. Fan less and super silent.
TECHNICAL SPECIFICATIONS:
Voltage input: 85~264VAC - 120~373VDC
Power: 150 watts
Models constant voltage output: 12 - 15 - 24 - 36 - 48VDC
Model output current (LRS-150-12): 12,5A @ 12VDC
Model output current (LRS-150-15): 10A @ 15VDC
Model output current (LRS-150-24): 6,5A @ 24VDC
Model output current (LRS-150-36): 4,3A @ 36VDC
Model output current (LRS-150-48): 3,3A @ 48VDC
Dimensions: 159mm x 97mm x H 30mm
IP protection: IP20
Certifications: CE - RoHS - FCC - UL - TUV - EMC - CB
Protection: Short circuit, overload, over voltage, over temperature, recover automatically after fault condition are removed.
Others:
- No load power consumption <0,5W.
- Withstand 5G vibration test.
- High operating temperature up to 70°C.
- Automatic input voltage adjustment.
- Screw terminals.
- Free air convection, super silent.
- Metal housing with height <30mm.
DATA SHEET:




POWER SUPPLY AC/DC MEAN WELL 150 WATT LRS SERIE - SINGLE OUTPUT - FAN LESS
RSP-320-X (RSP-320-X)
DESCRIPTION:
Power supply must be fundamental in all kinds of electronic device. Choosing carefully the power supply with the specific requirements of power, reliability and resistance means putting safety in an essential part of the system by reducing the mínimum risk factors and improving performance. Meanwell Compact serie with low profile are made with miniature electronic components and reduce the dimention of installation. Forced air cooling.
TECHNICAL SPECIFICATIONS:
Voltage input: 85~264VAC - 120~370VDC
Power: 320 watt
Models constant voltage output: 2,5 - 3,3 - 4 - 5 - 7,5 - 12 - 13,5 - 15 - 24 - 27 - 36 - 48VDC
Model output current (RSP-320-2.5): 60A @ 2,5VDC
Model output current (RSP-320-3.3): 60A @ 3,3VDC
Model output current (RSP-320-4): 60A @ 4VDC
Model output current (RSP-320-5): 60A @ 5VDC
Model output current (RSP-320-7.5): 40A @ 7,5VDC
Model output current (RSP-320-12): 26,7A @ 12VDC
Model output current (RSP-320-13,5): 23,8A @ 13,5VDC
Model output current (RSP-320-15): 21,4A @ 15VDC
Model output current (RSP-320-24): 13,4A @ 24VDC
Model output current (RSP-320-27): 11,9A @ 27VDC
Model output current (RSP-320-36): 8,9A @ 36VDC
Model output current (RSP-320-48): 6,7A @ 48VDC
Dimensions: 215mm x 115mm x H 30mm
IP protection: IP20
Certifications: CE - RoHS - FCC - UL - TUV - EMI
Protection: Short circuit, overload, over voltage, over temperature, recover automatically after fault condition are removed.
Others:
DATA SHEET:



Power supply must be fundamental in all kinds of electronic device. Choosing carefully the power supply with the specific requirements of power, reliability and resistance means putting safety in an essential part of the system by reducing the mínimum risk factors and improving performance. Meanwell Compact serie with low profile are made with miniature electronic components and reduce the dimention of installation. Forced air cooling.
TECHNICAL SPECIFICATIONS:
Voltage input: 85~264VAC - 120~370VDC
Power: 320 watt
Models constant voltage output: 2,5 - 3,3 - 4 - 5 - 7,5 - 12 - 13,5 - 15 - 24 - 27 - 36 - 48VDC
Model output current (RSP-320-2.5): 60A @ 2,5VDC
Model output current (RSP-320-3.3): 60A @ 3,3VDC
Model output current (RSP-320-4): 60A @ 4VDC
Model output current (RSP-320-5): 60A @ 5VDC
Model output current (RSP-320-7.5): 40A @ 7,5VDC
Model output current (RSP-320-12): 26,7A @ 12VDC
Model output current (RSP-320-13,5): 23,8A @ 13,5VDC
Model output current (RSP-320-15): 21,4A @ 15VDC
Model output current (RSP-320-24): 13,4A @ 24VDC
Model output current (RSP-320-27): 11,9A @ 27VDC
Model output current (RSP-320-36): 8,9A @ 36VDC
Model output current (RSP-320-48): 6,7A @ 48VDC
Dimensions: 215mm x 115mm x H 30mm
IP protection: IP20
Certifications: CE - RoHS - FCC - UL - TUV - EMI
Protection: Short circuit, overload, over voltage, over temperature, recover automatically after fault condition are removed.
Others:
- PFC power factor correction circuit.
- ON-OFF remote control.
- Automatic input voltage adjustment.
- Screw terminals.
- Forced air cooling.
- Metal housing with height <30 mm.
DATA SHEET:



POWER SUPPLY AC/DC MEANWELL 320 WATT COMPACT SERIE - SINGLE OUTPUT - FORCED COOLING
LPV-35-X (LPV-35-X)
DESCRIZIONE:
L'alimentatore è un elemento indispensabile e fondamentale in ogni tipo di apparecchio elettronico. Scegliere accuratamente l'alimentatore che abbia i requisiti giusti di potenza, affidabilità e resistenza significa mettere in sicurezza una parte fondamentale del sistema riducendo al minimo i fattori di rischio e migliorando le performance. Gli alimentatori Mean Well serie LPV sono indicati in per ambienti molto umidi o dove è presente molta polvere e con tensioni in ingresso 110-220 volt con elevati picchi di sovratensioni.
SPECIFICHE TECNICHE:
Alimentazione: 90~264VAC - 127~370VDC
Potenza: 35 watt
Modelli con tensione costante out: 5 - 12 - 15 - 24 - 36VDC
Corrente out modello (LPV-35-5): 5A @ 5VDC
Corrente out modello (LPV-35-12): 3A @ 12VDC
Corrente out modello (LPV-35-15): 2,4A @ 15VDC
Corrente out modello (LPV-35-24): 1,5A @ 24VDC
Corrente out modello (LPV-35-36): 1A @ 36VDC
Dimensioni: 148mm x 40mm x H 30mm
Grado di protezione: IP67
Certificazione: CE - RoHS - FCC - UL - TUV - EMC
Protezione: Sovraccarico, cortocircuito, sovra-temperatura. Ripristino automatico.
Varie:
SCHEDA TECNICA:

L'alimentatore è un elemento indispensabile e fondamentale in ogni tipo di apparecchio elettronico. Scegliere accuratamente l'alimentatore che abbia i requisiti giusti di potenza, affidabilità e resistenza significa mettere in sicurezza una parte fondamentale del sistema riducendo al minimo i fattori di rischio e migliorando le performance. Gli alimentatori Mean Well serie LPV sono indicati in per ambienti molto umidi o dove è presente molta polvere e con tensioni in ingresso 110-220 volt con elevati picchi di sovratensioni.
SPECIFICHE TECNICHE:
Alimentazione: 90~264VAC - 127~370VDC
Potenza: 35 watt
Modelli con tensione costante out: 5 - 12 - 15 - 24 - 36VDC
Corrente out modello (LPV-35-5): 5A @ 5VDC
Corrente out modello (LPV-35-12): 3A @ 12VDC
Corrente out modello (LPV-35-15): 2,4A @ 15VDC
Corrente out modello (LPV-35-24): 1,5A @ 24VDC
Corrente out modello (LPV-35-36): 1A @ 36VDC
Dimensioni: 148mm x 40mm x H 30mm
Grado di protezione: IP67
Certificazione: CE - RoHS - FCC - UL - TUV - EMC
Protezione: Sovraccarico, cortocircuito, sovra-temperatura. Ripristino automatico.
Varie:
- Supporta vibrazioni con accelerazione fino a 2G.
- Selezione automatica voltaggio ingresso.
- Uscite via cavo.
- Senza ventola, super silenzioso.
- Contenitore di plastica con altezza <30mm.
SCHEDA TECNICA:


ALIMENTATORE AC/DC MEAN WELL 35 WATT SERIE LPV - SINGOLA USCITA - IP67
NDR-480-X (NDR-480-X)
DESCRIZIONE:
L'alimentatore è un elemento indispensabile e fondamentale in ogni tipo di apparecchio elettronico. Scegliere accuratamente l'alimentatore che abbia i requisiti giusti di potenza, affidabilità e resistenza significa mettere in sicurezza una parte fondamentale del sistema riducendo al minimo i fattori di rischio e migliorando le performance. Gli alimentatori serie DR Din sono adatti per essere installati in cassette elettriche a muro su guida rail Din.
SPECIFICHE TECNICHE:
Alimentazione: 90~264VAC - 127~370VDC
Potenza: 480 watt
Modelli con tensione costante out: 24 - 48VDC
Corrente out modello (NDR-480-24): 20A @ 24VDC
Corrente out modello (NDR-480-48): 10A @ 48VDC
Dimensioni: 128,5mm x 125,2mm x H 128,5mm
Grado di protezione: IP20
Certificazione: CE - RoHS - UL - TUV - EMC - CB
Protezione: Sovraccarico, cortocircuito, sovra-temperatura. Ripristino automatico.
Varie:
SCHEDA TECNICA:




L'alimentatore è un elemento indispensabile e fondamentale in ogni tipo di apparecchio elettronico. Scegliere accuratamente l'alimentatore che abbia i requisiti giusti di potenza, affidabilità e resistenza significa mettere in sicurezza una parte fondamentale del sistema riducendo al minimo i fattori di rischio e migliorando le performance. Gli alimentatori serie DR Din sono adatti per essere installati in cassette elettriche a muro su guida rail Din.
SPECIFICHE TECNICHE:
Alimentazione: 90~264VAC - 127~370VDC
Potenza: 480 watt
Modelli con tensione costante out: 24 - 48VDC
Corrente out modello (NDR-480-24): 20A @ 24VDC
Corrente out modello (NDR-480-48): 10A @ 48VDC
Dimensioni: 128,5mm x 125,2mm x H 128,5mm
Grado di protezione: IP20
Certificazione: CE - RoHS - UL - TUV - EMC - CB
Protezione: Sovraccarico, cortocircuito, sovra-temperatura. Ripristino automatico.
Varie:
- Alta densità di potenza.
- Basso consumo a vuoto <0,5W.
- Indicato per scatole elettriche Rail Din.
- Selezione automatica voltaggio ingresso.
- Solidi terminali a vite.
- Senza ventola, super silenzioso.
- Contenitore metallico.
SCHEDA TECNICA:




ALIMENTATORE AC/DC MEAN WELL 480 WATT SERIE RAIL DIN - SINGOLA USCITA
RSP-150-X (RSP-150-X)
DESCRIPTION:
Power supply must be fundamental in all kinds of electronic device. Choosing carefully the power supply with the specific requirements of power, reliability and resistance means putting safety in an essential part of the system by reducing the mínimum risk factors and improving performance. Meanwell Compact serie with low profile are made with miniature electronic components and reduce the dimention of installation. Fan less and super silent.
TECHNICAL SPECIFICATIONS:
Voltage input: 85~264VAC - 120~370VDC
Power: 150 watt
Models constant voltage output: 3,3 - 5 - 7,5 - 12 - 13,5 - 15 - 24 - 27 - 48VDC
Model output current (RSP-150-3.3): 30A @ 3,3VDC
Model output current (RSP-150-5): 30A @ 5VDC
Model output current (RSP-150-7.5): 20A @ 7,5VDC
Model output current (RSP-150-12): 12,5A @ 12VDC
Model output current (RSP-150-13,5): 11,2A @ 13,5VDC
Model output current (RSP-150-15): 10A @ 15VDC
Model output current (RSP-150-24): 6,3A @ 24VDC
Model output current (RSP-150-27): 5,6A @ 27VDC
Model output current (RSP-150-48): 3,2A @ 48VDC
Dimensions: 199mm x 119mm x H 30mm
IP protection: IP20
Certifications: CE - RoHS - FCC - UL - TUV - EMI
Protection: Short circuit, overload, over voltage, over temperature, recover automatically after fault condition are removed.
Others:
DATA SHEET:


Power supply must be fundamental in all kinds of electronic device. Choosing carefully the power supply with the specific requirements of power, reliability and resistance means putting safety in an essential part of the system by reducing the mínimum risk factors and improving performance. Meanwell Compact serie with low profile are made with miniature electronic components and reduce the dimention of installation. Fan less and super silent.
TECHNICAL SPECIFICATIONS:
Voltage input: 85~264VAC - 120~370VDC
Power: 150 watt
Models constant voltage output: 3,3 - 5 - 7,5 - 12 - 13,5 - 15 - 24 - 27 - 48VDC
Model output current (RSP-150-3.3): 30A @ 3,3VDC
Model output current (RSP-150-5): 30A @ 5VDC
Model output current (RSP-150-7.5): 20A @ 7,5VDC
Model output current (RSP-150-12): 12,5A @ 12VDC
Model output current (RSP-150-13,5): 11,2A @ 13,5VDC
Model output current (RSP-150-15): 10A @ 15VDC
Model output current (RSP-150-24): 6,3A @ 24VDC
Model output current (RSP-150-27): 5,6A @ 27VDC
Model output current (RSP-150-48): 3,2A @ 48VDC
Dimensions: 199mm x 119mm x H 30mm
IP protection: IP20
Certifications: CE - RoHS - FCC - UL - TUV - EMI
Protection: Short circuit, overload, over voltage, over temperature, recover automatically after fault condition are removed.
Others:
- PFC power factor correction circuit.
- ON-OFF remote control.
- Automatic input voltage adjustment.
- Screw terminals.
- Free air convection, super silent.
- Metal housing with height <30 mm.
DATA SHEET:


POWER SUPPLY AC/DC MEANWELL 150 WATT COMPACT SERIE - SINGLE OUTPUT - FAN LESS
DR-30-X (DR-30-X)
DESCRIPTION:
Power supply must be fundamental in all kinds of electronic device. Choosing carefully the power supply with the specific requirements of power, reliability and resistance means putting safety in an essential part of the system by reducing the mínimum risk factors and improving performance. Mean Well DR Series power supplies are suitable for installation in electrical wall boxes rail Din.
TECHNICAL SPECIFICATIONS:
Voltage input: 85~264VAC - 120~370VDC
Power: 30 watts
Models constant voltage output: 5 - 12 - 15 - 24VDC
Model output current (DR-30-5): 3A @ 5VDC
Model output current (DR-30-12): 2A @ 12VDC
Model output current (DR-30-15): 2A @ 15VDC
Model output current (DR-30-24): 1,5A @ 24VDC
Dimensions: 93mm x 78mm x H 56mm
IP protection: IP20
Certifications: CE - RoHS - UL - TUV - EMC - CB
Protection: Short circuit, overload, over voltage, over temperature, recover automatically after fault condition are removed.
Others:
DATA SHEET:


Power supply must be fundamental in all kinds of electronic device. Choosing carefully the power supply with the specific requirements of power, reliability and resistance means putting safety in an essential part of the system by reducing the mínimum risk factors and improving performance. Mean Well DR Series power supplies are suitable for installation in electrical wall boxes rail Din.
TECHNICAL SPECIFICATIONS:
Voltage input: 85~264VAC - 120~370VDC
Power: 30 watts
Models constant voltage output: 5 - 12 - 15 - 24VDC
Model output current (DR-30-5): 3A @ 5VDC
Model output current (DR-30-12): 2A @ 12VDC
Model output current (DR-30-15): 2A @ 15VDC
Model output current (DR-30-24): 1,5A @ 24VDC
Dimensions: 93mm x 78mm x H 56mm
IP protection: IP20
Certifications: CE - RoHS - UL - TUV - EMC - CB
Protection: Short circuit, overload, over voltage, over temperature, recover automatically after fault condition are removed.
Others:
- No load power consumption <0,5W.
- Suitable for electrical boxes Rail Din
- Automatic input voltage adjustment.
- Screw terminals.
- Free air convection, super silent.
- Plastic housing.
DATA SHEET:


POWER SUPPLY AC/DC MEAN WELL 30 WATTS RAIL DR SERIE - SINGLE OUTPUT - FAN LESS
NDR-240-X (NDR-240-X)
DESCRIZIONE:
L'alimentatore è un elemento indispensabile e fondamentale in ogni tipo di apparecchio elettronico. Scegliere accuratamente l'alimentatore che abbia i requisiti giusti di potenza, affidabilità e resistenza significa mettere in sicurezza una parte fondamentale del sistema riducendo al minimo i fattori di rischio e migliorando le performance. Gli alimentatori serie DR Din sono adatti per essere installati in cassette elettriche a muro su guida rail Din.
SPECIFICHE TECNICHE:
Alimentazione: 90~264VAC - 127~370VDC
Potenza: 240 watt
Modelli con tensione costante out: 24 - 48VDC
Corrente out modello (NDR-240-24): 10A @ 24VDC
Corrente out modello (NDR-240-48): 5A @ 48VDC
Dimensioni: 125,2mm x 63mm x H 113,5mm
Grado di protezione: IP20
Certificazione: CE - RoHS - UL - TUV - EMC - CB
Protezione: Sovraccarico, cortocircuito, sovra-temperatura. Ripristino automatico.
Varie:
SCHEDA TECNICA:

>

L'alimentatore è un elemento indispensabile e fondamentale in ogni tipo di apparecchio elettronico. Scegliere accuratamente l'alimentatore che abbia i requisiti giusti di potenza, affidabilità e resistenza significa mettere in sicurezza una parte fondamentale del sistema riducendo al minimo i fattori di rischio e migliorando le performance. Gli alimentatori serie DR Din sono adatti per essere installati in cassette elettriche a muro su guida rail Din.
SPECIFICHE TECNICHE:
Alimentazione: 90~264VAC - 127~370VDC
Potenza: 240 watt
Modelli con tensione costante out: 24 - 48VDC
Corrente out modello (NDR-240-24): 10A @ 24VDC
Corrente out modello (NDR-240-48): 5A @ 48VDC
Dimensioni: 125,2mm x 63mm x H 113,5mm
Grado di protezione: IP20
Certificazione: CE - RoHS - UL - TUV - EMC - CB
Protezione: Sovraccarico, cortocircuito, sovra-temperatura. Ripristino automatico.
Varie:
- Alta densità di potenza.
- Basso consumo a vuoto <0,5W.
- Indicato per scatole elettriche Rail Din.
- Selezione automatica voltaggio ingresso.
- Solidi terminali a vite.
- Senza ventola, super silenzioso.
- Contenitore metallico.
SCHEDA TECNICA:




ALIMENTATORE AC/DC MEAN WELL 240 WATT SERIE RAIL DIN - SINGOLA USCITA
RSP-750-X (RSP-750-X)
DESCRIPTION:
Power supply must be fundamental in all kinds of electronic device. Choosing carefully the power supply with the specific requirements of power, reliability and resistance means putting safety in an essential part of the system by reducing the mínimum risk factors and improving performance. Meanwell Compact serie with low profile are made with miniature electronic components and reduce the dimention of installation. Forced air cooling.
TECHNICAL SPECIFICATIONS:
Voltage input: 85~264VAC - 120~370VDC
Power: 750 watt
Models constant voltage output: 5 - 12 - 15 - 24 - 27 - 48VDC
Model output current (RSP-750-5): 100A @ 5VDC
Model output current (RSP-750-12): 62,5A @ 12VDC
Model output current (RSP-750-15): 50A @ 15VDC
Model output current (RSP-750-24): 31,3A @ 24VDC
Model output current (RSP-750-27): 27,8A @ 27VDC
Model output current (RSP-750-48): 15,7A @ 48VDC
Dimensions: 250mm x 127mm x H 41mm
IP protection: IP20
Certifications: CE - RoHS - FCC - UL - TUV - EMI
Protection: Short circuit, overload, over voltage, over temperature, recover automatically after fault condition are removed.
Others:
DATA SHEET:





Power supply must be fundamental in all kinds of electronic device. Choosing carefully the power supply with the specific requirements of power, reliability and resistance means putting safety in an essential part of the system by reducing the mínimum risk factors and improving performance. Meanwell Compact serie with low profile are made with miniature electronic components and reduce the dimention of installation. Forced air cooling.
TECHNICAL SPECIFICATIONS:
Voltage input: 85~264VAC - 120~370VDC
Power: 750 watt
Models constant voltage output: 5 - 12 - 15 - 24 - 27 - 48VDC
Model output current (RSP-750-5): 100A @ 5VDC
Model output current (RSP-750-12): 62,5A @ 12VDC
Model output current (RSP-750-15): 50A @ 15VDC
Model output current (RSP-750-24): 31,3A @ 24VDC
Model output current (RSP-750-27): 27,8A @ 27VDC
Model output current (RSP-750-48): 15,7A @ 48VDC
Dimensions: 250mm x 127mm x H 41mm
IP protection: IP20
Certifications: CE - RoHS - FCC - UL - TUV - EMI
Protection: Short circuit, overload, over voltage, over temperature, recover automatically after fault condition are removed.
Others:
- PFC power factor correction circuit.
- ON-OFF remote control.
- Automatic input voltage adjustment.
- Screw terminals.
- Forced air cooling.
- Metal housing with height <41 mm.
- Output voltage can be trimmed between 40% to 110%.
- 12VDC 100mA auxiliary power.
DATA SHEET:





POWER SUPPLY AC/DC MEANWELL 750 WATT COMPACT SERIE - SINGLE OUTPUT - FORCED COOLING
NDR-75-X (NDR-75-X)
DESCRIZIONE:
L'alimentatore è un elemento indispensabile e fondamentale in ogni tipo di apparecchio elettronico. Scegliere accuratamente l'alimentatore che abbia i requisiti giusti di potenza, affidabilità e resistenza significa mettere in sicurezza una parte fondamentale del sistema riducendo al minimo i fattori di rischio e migliorando le performance. Gli alimentatori serie DR Din sono adatti per essere installati in cassette elettriche a muro su guida rail Din.
SPECIFICHE TECNICHE:
Alimentazione: 90~264VAC - 127~370VDC
Potenza: 75 watt
Modelli con tensione costante out: 12 - 24 - 48VDC
Corrente out modello (NDR-75-12): 6,3A @ 12VDC
Corrente out modello (NDR-75-24): 3,2A @ 24VDC
Corrente out modello (NDR-75-48): 1,6A @ 48VDC
Dimensioni: 125,2mm x 32mm x H 102mm
Grado di protezione: IP20
Certificazione: CE - RoHS - UL - TUV - EMC - CB
Protezione: Sovraccarico, cortocircuito, sovra-temperatura. Ripristino automatico.
Varie:
SCHEDA TECNICA:




L'alimentatore è un elemento indispensabile e fondamentale in ogni tipo di apparecchio elettronico. Scegliere accuratamente l'alimentatore che abbia i requisiti giusti di potenza, affidabilità e resistenza significa mettere in sicurezza una parte fondamentale del sistema riducendo al minimo i fattori di rischio e migliorando le performance. Gli alimentatori serie DR Din sono adatti per essere installati in cassette elettriche a muro su guida rail Din.
SPECIFICHE TECNICHE:
Alimentazione: 90~264VAC - 127~370VDC
Potenza: 75 watt
Modelli con tensione costante out: 12 - 24 - 48VDC
Corrente out modello (NDR-75-12): 6,3A @ 12VDC
Corrente out modello (NDR-75-24): 3,2A @ 24VDC
Corrente out modello (NDR-75-48): 1,6A @ 48VDC
Dimensioni: 125,2mm x 32mm x H 102mm
Grado di protezione: IP20
Certificazione: CE - RoHS - UL - TUV - EMC - CB
Protezione: Sovraccarico, cortocircuito, sovra-temperatura. Ripristino automatico.
Varie:
- Alta densità di potenza.
- Basso consumo a vuoto <0,5W.
- Indicato per scatole elettriche Rail Din.
- Selezione automatica voltaggio ingresso.
- Solidi terminali a vite.
- Senza ventola, super silenzioso.
- Contenitore metallico.
SCHEDA TECNICA:




ALIMENTATORE AC/DC MEAN WELL 75 WATT SERIE RAIL DIN - SINGOLA USCITA
NDR-120-X (NDR-120-X)
DESCRIZIONE:
L'alimentatore è un elemento indispensabile e fondamentale in ogni tipo di apparecchio elettronico. Scegliere accuratamente l'alimentatore che abbia i requisiti giusti di potenza, affidabilità e resistenza significa mettere in sicurezza una parte fondamentale del sistema riducendo al minimo i fattori di rischio e migliorando le performance. Gli alimentatori serie DR Din sono adatti per essere installati in cassette elettriche a muro su guida rail Din.
SPECIFICHE TECNICHE:
Alimentazione: 90~264VAC - 127~370VDC
Potenza: 120 watt
Modelli con tensione costante out: 12 - 24 - 48VDC
Corrente out modello (NDR-120-12): 10A @ 12VDC
Corrente out modello (NDR-120-24): 5A @ 24VDC
Corrente out modello (NDR-120-48): 2,5A @ 48VDC
Dimensioni: 125,2mm x 40mm x H 113,5mm
Grado di protezione: IP20
Certificazione: CE - RoHS - UL - TUV - EMC - CB
Protezione: Sovraccarico, cortocircuito, sovra-temperatura. Ripristino automatico.
Varie:
SCHEDA TECNICA:




L'alimentatore è un elemento indispensabile e fondamentale in ogni tipo di apparecchio elettronico. Scegliere accuratamente l'alimentatore che abbia i requisiti giusti di potenza, affidabilità e resistenza significa mettere in sicurezza una parte fondamentale del sistema riducendo al minimo i fattori di rischio e migliorando le performance. Gli alimentatori serie DR Din sono adatti per essere installati in cassette elettriche a muro su guida rail Din.
SPECIFICHE TECNICHE:
Alimentazione: 90~264VAC - 127~370VDC
Potenza: 120 watt
Modelli con tensione costante out: 12 - 24 - 48VDC
Corrente out modello (NDR-120-12): 10A @ 12VDC
Corrente out modello (NDR-120-24): 5A @ 24VDC
Corrente out modello (NDR-120-48): 2,5A @ 48VDC
Dimensioni: 125,2mm x 40mm x H 113,5mm
Grado di protezione: IP20
Certificazione: CE - RoHS - UL - TUV - EMC - CB
Protezione: Sovraccarico, cortocircuito, sovra-temperatura. Ripristino automatico.
Varie:
- Alta densità di potenza.
- Basso consumo a vuoto <0,5W.
- Indicato per scatole elettriche Rail Din.
- Selezione automatica voltaggio ingresso.
- Solidi terminali a vite.
- Senza ventola, super silenzioso.
- Contenitore metallico.
SCHEDA TECNICA:




ALIMENTATORE AC/DC MEAN WELL 120 WATT SERIE RAIL DIN - SINGOLA USCITA
RS-75-X (RS-75-X)
DESCRIPTION:
Power supply must be fundamental in all kinds of electronic device. Choosing carefully the power supply with the specific requirements of power, reliability and resistance means putting safety in an essential part of the system by reducing the mínimum risk factors and improving performance. Meanwell RS series power supplies are very strong, indicated in machines where there are high mechanical stress, high temperatures up to 70°C, and input voltage 110-220 volts with high peak voltages.
TECHNICAL SPECIFICATIONS:
Voltage input: 88~264VAC - 125~373VDC
Power: 75 watts
Models constant voltage output: 3,3 - 5 - 12 - 15 - 24 - 48VDC
Model output current (RS-75-3.3): 15A @ 3,3VDC
Model output current (RS-75-5): 12A @ 5VDC
Model output current (RS-75-12): 6A @ 12VDC
Model output current (RS-75-15): 5A @ 15VDC
Model output current (RS-75-24): 3,2A @ 24VDC
Model output current (RS-75-48): 1,5A @ 48VDC
Dimensions: 120mm x 98mm x H 38mm
IP protection: IP20
Certifications: CE - RoHS - FCC - UL - TUV - EMC - CB
Protection: Short circuit, overload, over voltage, over temperature, recover automatically after fault condition are removed.
Others:
DATA SHEET:


Power supply must be fundamental in all kinds of electronic device. Choosing carefully the power supply with the specific requirements of power, reliability and resistance means putting safety in an essential part of the system by reducing the mínimum risk factors and improving performance. Meanwell RS series power supplies are very strong, indicated in machines where there are high mechanical stress, high temperatures up to 70°C, and input voltage 110-220 volts with high peak voltages.
TECHNICAL SPECIFICATIONS:
Voltage input: 88~264VAC - 125~373VDC
Power: 75 watts
Models constant voltage output: 3,3 - 5 - 12 - 15 - 24 - 48VDC
Model output current (RS-75-3.3): 15A @ 3,3VDC
Model output current (RS-75-5): 12A @ 5VDC
Model output current (RS-75-12): 6A @ 12VDC
Model output current (RS-75-15): 5A @ 15VDC
Model output current (RS-75-24): 3,2A @ 24VDC
Model output current (RS-75-48): 1,5A @ 48VDC
Dimensions: 120mm x 98mm x H 38mm
IP protection: IP20
Certifications: CE - RoHS - FCC - UL - TUV - EMC - CB
Protection: Short circuit, overload, over voltage, over temperature, recover automatically after fault condition are removed.
Others:
- No load power consumption <0,5W.
- Withstand 5G vibration test.
- High operating temperature up to 70°C.
- Automatic input voltage adjustment.
- Screw terminals.
- Free air convection, super silent.
- Metal housing with height <28mm.
DATA SHEET:


POWER SUPPLY AC/DC MEANWELL 75 WATT RS SERIE - SINGLE OUTPUT - FAN LESS
LRS-350-X (LRS-350-X)
DESCRIPTION:
Power supply must be fundamental in all kinds of electronic device. Choosing carefully the power supply with the specific requirements of power, reliability and resistance means putting safety in an essential part of the system by reducing the mínimum risk factors and improving performance. Mean Well LRS series power supplies are very strong, indicated in machines where there are high mechanical stress, high temperatures up to 70°C, and input voltage 110-220 volts with high peak voltages. Mean Well LRS serie with low profile are made with miniature electronic components and reduce the dimention of installation.
TECHNICAL SPECIFICATIONS:
Voltage input: 85~264VAC - 120~373VDC
Power: 350 watts
Models constant voltage output: 3,3 - 4,2 - 5 - 12 - 15 - 24 - 36 - 48VDC
Model output current (LRS-350-3.3): 60A @ 3,3VDC
Model output current (LRS-350-4.2): 60A @ 4,2VDC
Model output current (LRS-350-5): 60A @ 5VDC
Model output current (LRS-350-12): 29A @ 12VDC
Model output current (LRS-350-15): 23,2A @ 15VDC
Model output current (LRS-350-24): 14,6A @ 24VDC
Model output current (LRS-350-36): 9,7A @ 36VDC
Model output current (LRS-350-48): 7,3A @ 48VDC
Dimensions: 215mm x 115mm x H 30mm
IP protection: IP20
Certifications: CE - RoHS - FCC - UL - TUV - EMC - CB
Protection: Short circuit, overload, over voltage, over temperature, recover automatically after fault condition are removed.
Others:
DATA SHEET:




Power supply must be fundamental in all kinds of electronic device. Choosing carefully the power supply with the specific requirements of power, reliability and resistance means putting safety in an essential part of the system by reducing the mínimum risk factors and improving performance. Mean Well LRS series power supplies are very strong, indicated in machines where there are high mechanical stress, high temperatures up to 70°C, and input voltage 110-220 volts with high peak voltages. Mean Well LRS serie with low profile are made with miniature electronic components and reduce the dimention of installation.
TECHNICAL SPECIFICATIONS:
Voltage input: 85~264VAC - 120~373VDC
Power: 350 watts
Models constant voltage output: 3,3 - 4,2 - 5 - 12 - 15 - 24 - 36 - 48VDC
Model output current (LRS-350-3.3): 60A @ 3,3VDC
Model output current (LRS-350-4.2): 60A @ 4,2VDC
Model output current (LRS-350-5): 60A @ 5VDC
Model output current (LRS-350-12): 29A @ 12VDC
Model output current (LRS-350-15): 23,2A @ 15VDC
Model output current (LRS-350-24): 14,6A @ 24VDC
Model output current (LRS-350-36): 9,7A @ 36VDC
Model output current (LRS-350-48): 7,3A @ 48VDC
Dimensions: 215mm x 115mm x H 30mm
IP protection: IP20
Certifications: CE - RoHS - FCC - UL - TUV - EMC - CB
Protection: Short circuit, overload, over voltage, over temperature, recover automatically after fault condition are removed.
Others:
- No load power consumption <0,75W.
- Withstand 5G vibration test.
- High operating temperature up to 70°C.
- Automatic input voltage adjustment.
- Screw terminals.
- Forced air cooling.
- Metal housing with height <30mm.
DATA SHEET:




POWER SUPPLY AC/DC MEAN WELL 350 WATT LRS SERIE - SINGLE OUTPUT - FAN COOLING

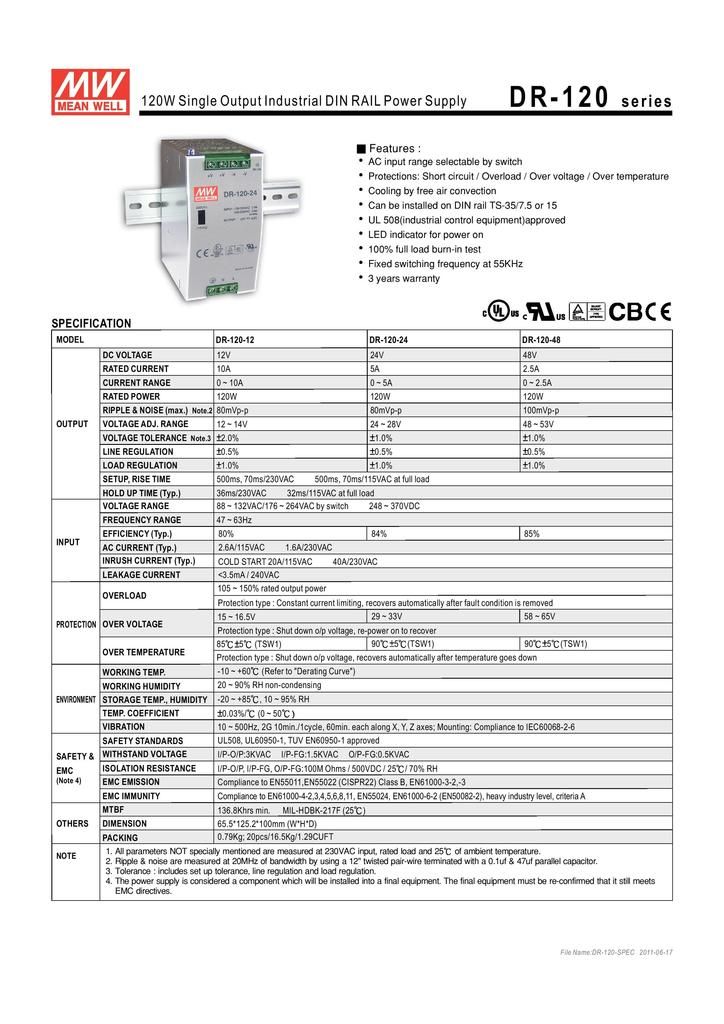

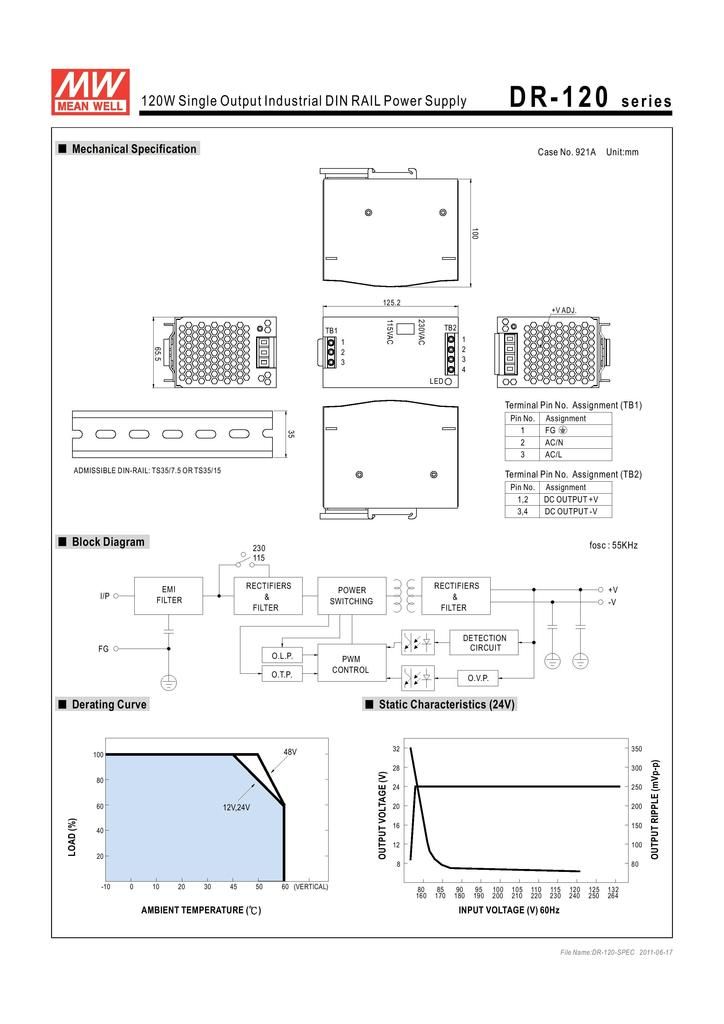

DR-120-X (DR-120-X)
DESCRIPTION:
Power supply must be fundamental in all kinds of electronic device. Choosing carefully the power supply with the specific requirements of power, reliability and resistance means putting safety in an essential part of the system by reducing the mínimum risk factors and improving performance. Mean Well DR Series power supplies are suitable for installation in electrical wall boxes rail Din.
TECHNICAL SPECIFICATIONS:
Voltage input: 85~264VAC - 120~370VDC
Power: 120 watts
Models constant voltage output: 12 - 24 - 48VDC
Model output current (DR-120-12): 10A @ 12VDC
Model output current (DR-120-24): 5A @ 24VDC
Model output current (DR-120-48): 2,5A @ 48VDC
Dimensions: 125,5mm x 65,6mm x H 100mm
IP protection: IP20
Certifications: CE - RoHS - UL - TUV - EMC - CB
Protection: Short circuit, overload, over voltage, over temperature, recover automatically after fault condition are removed.
Others:
DATA SHEET:
>

Power supply must be fundamental in all kinds of electronic device. Choosing carefully the power supply with the specific requirements of power, reliability and resistance means putting safety in an essential part of the system by reducing the mínimum risk factors and improving performance. Mean Well DR Series power supplies are suitable for installation in electrical wall boxes rail Din.
TECHNICAL SPECIFICATIONS:
Voltage input: 85~264VAC - 120~370VDC
Power: 120 watts
Models constant voltage output: 12 - 24 - 48VDC
Model output current (DR-120-12): 10A @ 12VDC
Model output current (DR-120-24): 5A @ 24VDC
Model output current (DR-120-48): 2,5A @ 48VDC
Dimensions: 125,5mm x 65,6mm x H 100mm
IP protection: IP20
Certifications: CE - RoHS - UL - TUV - EMC - CB
Protection: Short circuit, overload, over voltage, over temperature, recover automatically after fault condition are removed.
Others:
- No load power consumption <0,5W.
- Suitable for electrical boxes Rail Din
- Automatic input voltage adjustment.
- Screw terminals.
- Free air convection, super silent.
- Metal housing.
DATA SHEET:
>


POWER SUPPLY AC/DC MEAN WELL 120 WATTS RAIL DR SERIE - SINGLE OUTPUT - FAN LESS
ERPF-400-X (ERPF-400-X)
DESCRIPTION:
Power supply must be fundamental in all kinds of electronic device. Choosing carefully the power supply with the specific requirements of power, reliability and resistance means putting safety in an essential part of the system by reducing the mínimum risk factors and improving performance. Mean Well ERPS series power supplies are very strong, indicated in machines where there are high mechanical stress and input voltage 110-220 volts with high peak voltages. Mean Well ERPS serie with low profile are made with miniature electronic components and reduce the dimention of installation. Fan less and super silent.
TECHNICAL SPECIFICATIONS:
Voltage input: 90~264VAC - 127~370VDC
Power: 400 watts
Models constant voltage output: 12 - 24 - 48VDC
Model output current (ERPS-400-12): 30A @ 12VDC
Model output current (ERPS-400-24): 16,7A @ 24VDC
Model output current (ERPS-400-48): 8,3A @ 48VDC
Dimensions: 220mm x 130mm x H 48mm
IP protection: IP22
Certifications: CE - RoHS - EMC
Protection: Short circuit, overload, over voltage, over temperature, recover automatically after fault condition are removed.
Others:
DATA SHEET:




Power supply must be fundamental in all kinds of electronic device. Choosing carefully the power supply with the specific requirements of power, reliability and resistance means putting safety in an essential part of the system by reducing the mínimum risk factors and improving performance. Mean Well ERPS series power supplies are very strong, indicated in machines where there are high mechanical stress and input voltage 110-220 volts with high peak voltages. Mean Well ERPS serie with low profile are made with miniature electronic components and reduce the dimention of installation. Fan less and super silent.
TECHNICAL SPECIFICATIONS:
Voltage input: 90~264VAC - 127~370VDC
Power: 400 watts
Models constant voltage output: 12 - 24 - 48VDC
Model output current (ERPS-400-12): 30A @ 12VDC
Model output current (ERPS-400-24): 16,7A @ 24VDC
Model output current (ERPS-400-48): 8,3A @ 48VDC
Dimensions: 220mm x 130mm x H 48mm
IP protection: IP22
Certifications: CE - RoHS - EMC
Protection: Short circuit, overload, over voltage, over temperature, recover automatically after fault condition are removed.
Others:
- Withstand 3G vibration test.
- Automatic input voltage adjustment.
- Screw terminals.
- Free air convection, super silent.
DATA SHEET:




POWER SUPPLY AC/DC MEAN WELL 400 WATT ERPS SERIE - SINGLE OUTPUT - FAN LESS
RS-150-X (RS-150-X)
DESCRIZIONE:
L'ALIMENTATORE E' UN ELEMENTO INDISPENSABILE E FONDAMENTALE IN OGNI TIPO DI APPARECCHIO ELETTRONICO. SCEGLIERE ACCURATAMENTE L'ALIMENTATORE CHE ABBIA I REQUISITI GIUSTI DI POTENZA, AFFIDABILITA' E RESISTENZA SIGNIFICA METTERE IN SICUREZZA UNA PARTE FONDAMENTALE DEL SISTEMA RIDUCENDO AL MINIMO I FATTORI DI RISCHIO E MIGLIORANDO LE PERFORMANCE.
SPECIFICHE TECNICHE:
ALIMENTAZIONE: 88~264VDC - 125~373VDC
POTENZA: 75 WATT
TENSIONE COSTANTE OUT: 3,3 - 5 - 12 - 15 - 24 - 48VDC
CORRENTE OUT (RS-35-3.3): 15A @ 3,3VDC
CORRENTE OUT (RS-35-5): 12A @ 5VDC
CORRENTE OUT (RS-35-12): 6A @ 12VDC
CORRENTE OUT (RS-35-15): 5A @ 15VDC
CORRENTE OUT (RS-35-24): 3,2A @ 24VDC
CORRENTE OUT (RS-35-48): 1,5A @ 48VDC
DIMENSIONI: 120mm x 98mm x H 38mm
GRADO DI PROTEZIONE: IP20
CERTIFICAZIONE: CE - RoHS - FCC - UL - TUV - EMI
PROTEZIONE: SOVRACCARICO, CORTOCIRCUITO E TEMPERATURA CON RIPRISTINO AUTOMATICO.
VARIE:
SCHEDA TECNICA:


L'ALIMENTATORE E' UN ELEMENTO INDISPENSABILE E FONDAMENTALE IN OGNI TIPO DI APPARECCHIO ELETTRONICO. SCEGLIERE ACCURATAMENTE L'ALIMENTATORE CHE ABBIA I REQUISITI GIUSTI DI POTENZA, AFFIDABILITA' E RESISTENZA SIGNIFICA METTERE IN SICUREZZA UNA PARTE FONDAMENTALE DEL SISTEMA RIDUCENDO AL MINIMO I FATTORI DI RISCHIO E MIGLIORANDO LE PERFORMANCE.
SPECIFICHE TECNICHE:
ALIMENTAZIONE: 88~264VDC - 125~373VDC
POTENZA: 75 WATT
TENSIONE COSTANTE OUT: 3,3 - 5 - 12 - 15 - 24 - 48VDC
CORRENTE OUT (RS-35-3.3): 15A @ 3,3VDC
CORRENTE OUT (RS-35-5): 12A @ 5VDC
CORRENTE OUT (RS-35-12): 6A @ 12VDC
CORRENTE OUT (RS-35-15): 5A @ 15VDC
CORRENTE OUT (RS-35-24): 3,2A @ 24VDC
CORRENTE OUT (RS-35-48): 1,5A @ 48VDC
DIMENSIONI: 120mm x 98mm x H 38mm
GRADO DI PROTEZIONE: IP20
CERTIFICAZIONE: CE - RoHS - FCC - UL - TUV - EMI
PROTEZIONE: SOVRACCARICO, CORTOCIRCUITO E TEMPERATURA CON RIPRISTINO AUTOMATICO.
VARIE:
- SELEZIONE AUTOMATICA VOLTAGGIO INGRESSO.
- FANLESS.
- CONTENITORE METALLICO.
SCHEDA TECNICA:


POWER SUPPLY AC/DC MEANWELL 150 WATT RS SERIE - SINGLE OUTPUT - FAN LESS
DR-45-X (DR-45-X)
DESCRIPTION:
Power supply must be fundamental in all kinds of electronic device. Choosing carefully the power supply with the specific requirements of power, reliability and resistance means putting safety in an essential part of the system by reducing the mínimum risk factors and improving performance. Mean Well DR Series power supplies are suitable for installation in electrical wall boxes rail Din.
TECHNICAL SPECIFICATIONS:
Voltage input: 85~264VAC - 120~370VDC
Power: 45 watts
Models constant voltage output: 5 - 12 - 15 - 24VDC
Model output current (DR-45-5): 5A @ 5VDC
Model output current (DR-45-12): 3,5A @ 12VDC
Model output current (DR-45-15): 2,8A @ 15VDC
Model output current (DR-45-24): 2A @ 24VDC
Dimensions: 93mm x 78mm x H 67mm
IP protection: IP20
Certifications: CE - RoHS - UL - TUV - EMC - CB
Protection: Short circuit, overload, over voltage, over temperature, recover automatically after fault condition are removed.
Others:
DATA SHEET:
>
Power supply must be fundamental in all kinds of electronic device. Choosing carefully the power supply with the specific requirements of power, reliability and resistance means putting safety in an essential part of the system by reducing the mínimum risk factors and improving performance. Mean Well DR Series power supplies are suitable for installation in electrical wall boxes rail Din.
TECHNICAL SPECIFICATIONS:
Voltage input: 85~264VAC - 120~370VDC
Power: 45 watts
Models constant voltage output: 5 - 12 - 15 - 24VDC
Model output current (DR-45-5): 5A @ 5VDC
Model output current (DR-45-12): 3,5A @ 12VDC
Model output current (DR-45-15): 2,8A @ 15VDC
Model output current (DR-45-24): 2A @ 24VDC
Dimensions: 93mm x 78mm x H 67mm
IP protection: IP20
Certifications: CE - RoHS - UL - TUV - EMC - CB
Protection: Short circuit, overload, over voltage, over temperature, recover automatically after fault condition are removed.
Others:
- No load power consumption <0,5W.
- Suitable for electrical boxes Rail Din
- Automatic input voltage adjustment.
- Screw terminals.
- Free air convection, super silent.
- Plastic housing.
DATA SHEET:


POWER SUPPLY AC/DC MEAN WELL 45 WATTS RAIL DR SERIE - SINGLE OUTPUT - FAN LESS
UHP-750-X (UHP-750-X)
DESCRIZIONE:
L'alimentatore è un elemento indispensabile e fondamentale in ogni tipo di apparecchio elettronico. Scegliere accuratamente l'alimentatore che abbia i requisiti giusti di potenza, affidabilità e resistenza significa mettere in sicurezza una parte fondamentale del sistema riducendo al minimo i fattori di rischio e migliorando le performance. Gli alimentatori serie UHP sono molto robusti e compatti, indicati in macchine dove sono presenti elevate sollecitazioni meccaniche, possono lavorare a basse ed alte temperature fino a 70°C e tensioni in ingresso 110-220 volt con elevati picchi di sovratensioni. Sono realizzati con componentistica elettronica maggiormente miniaturizzata ad alto livello tecnologico per ridurre gli ingombri nell'installazione. Possibilità di linkare l'uscita con un altro alimentatore della stessa serie raddoppiando la potenza d'uscita.
SPECIFICHE TECNICHE:
Alimentazione: 90~264VAC - 127~370VDC
Potenza: 750 watt
Modelli con tensione costante out: 12 - 24 - 36 - 48VDC
Corrente out modello (UHP-750-12): 60A @ 12VDC
Corrente out modello (UHP-750-24): 31,3A @ 24VDC
Corrente out modello (UHP-750-36): 20,9A @ 36VDC
Corrente out modello (UHP-750-48): 15,7A @ 48VDC
Dimensioni: 237mm x 100mm x H 41mm
Grado di protezione: IP20
Certificazione: CE - RoHS - FCC - UL - TUV - EMC - CB - CCC
Protezione: Sovraccarico, cortocircuito, sovra-temperatura. Ripristino automatico.
Varie:
SCHEDA TECNICA:





L'alimentatore è un elemento indispensabile e fondamentale in ogni tipo di apparecchio elettronico. Scegliere accuratamente l'alimentatore che abbia i requisiti giusti di potenza, affidabilità e resistenza significa mettere in sicurezza una parte fondamentale del sistema riducendo al minimo i fattori di rischio e migliorando le performance. Gli alimentatori serie UHP sono molto robusti e compatti, indicati in macchine dove sono presenti elevate sollecitazioni meccaniche, possono lavorare a basse ed alte temperature fino a 70°C e tensioni in ingresso 110-220 volt con elevati picchi di sovratensioni. Sono realizzati con componentistica elettronica maggiormente miniaturizzata ad alto livello tecnologico per ridurre gli ingombri nell'installazione. Possibilità di linkare l'uscita con un altro alimentatore della stessa serie raddoppiando la potenza d'uscita.
SPECIFICHE TECNICHE:
Alimentazione: 90~264VAC - 127~370VDC
Potenza: 750 watt
Modelli con tensione costante out: 12 - 24 - 36 - 48VDC
Corrente out modello (UHP-750-12): 60A @ 12VDC
Corrente out modello (UHP-750-24): 31,3A @ 24VDC
Corrente out modello (UHP-750-36): 20,9A @ 36VDC
Corrente out modello (UHP-750-48): 15,7A @ 48VDC
Dimensioni: 237mm x 100mm x H 41mm
Grado di protezione: IP20
Certificazione: CE - RoHS - FCC - UL - TUV - EMC - CB - CCC
Protezione: Sovraccarico, cortocircuito, sovra-temperatura. Ripristino automatico.
Varie:
- Circuito di rifasamento PFC.
- Indicato per macchine in movimento, supporta vibrazioni con accelerazione fino a 5G.
- Può lavorare con temperature fino a 70°C.
- Selezione automatica voltaggio ingresso.
- Solidi terminali a vite.
- Senza ventola, super silenzioso.
- Contenitore di metallo con altezza <41mm.
SCHEDA TECNICA:





POWER SUPPLY AC/DC MEAN WELL 750 WATT UHP SERIE - SINGLE OUTPUT - FAN LESS
RSP-500-X (RSP-500-X)
DESCRIPTION:
Power supply must be fundamental in all kinds of electronic device. Choosing carefully the power supply with the specific requirements of power, reliability and resistance means putting safety in an essential part of the system by reducing the mínimum risk factors and improving performance. Meanwell Compact serie with low profile are made with miniature electronic components and reduce the dimention of installation. Forced air cooling.
TECHNICAL SPECIFICATIONS:
Voltage input: 85~264VAC - 120~370VDC
Power: 500 watt
Models constant voltage output: 3,3 - 4 - 5 - 12 - 15 - 24 - 27 - 48VDC
Model output current (RSP-500-3.3): 90A @ 3,3VDC
Model output current (RSP-500-4): 90A @ 4VDC
Model output current (RSP-500-5): 90A @ 5VDC
Model output current (RSP-500-12): 41,7A @ 12VDC
Model output current (RSP-500-15): 33,4A @ 15VDC
Model output current (RSP-500-24): 21A @ 24VDC
Model output current (RSP-500-27): 18,6A @ 27VDC
Model output current (RSP-500-48): 10,5A @ 48VDC
Dimensions: 230mm x 127mm x H 40mm
IP protection: IP20
Certifications: CE - RoHS - FCC - UL - TUV - EMI
Protection: Short circuit, overload, over voltage, over temperature, recover automatically after fault condition are removed.
Others:
DATA SHEET:



Power supply must be fundamental in all kinds of electronic device. Choosing carefully the power supply with the specific requirements of power, reliability and resistance means putting safety in an essential part of the system by reducing the mínimum risk factors and improving performance. Meanwell Compact serie with low profile are made with miniature electronic components and reduce the dimention of installation. Forced air cooling.
TECHNICAL SPECIFICATIONS:
Voltage input: 85~264VAC - 120~370VDC
Power: 500 watt
Models constant voltage output: 3,3 - 4 - 5 - 12 - 15 - 24 - 27 - 48VDC
Model output current (RSP-500-3.3): 90A @ 3,3VDC
Model output current (RSP-500-4): 90A @ 4VDC
Model output current (RSP-500-5): 90A @ 5VDC
Model output current (RSP-500-12): 41,7A @ 12VDC
Model output current (RSP-500-15): 33,4A @ 15VDC
Model output current (RSP-500-24): 21A @ 24VDC
Model output current (RSP-500-27): 18,6A @ 27VDC
Model output current (RSP-500-48): 10,5A @ 48VDC
Dimensions: 230mm x 127mm x H 40mm
IP protection: IP20
Certifications: CE - RoHS - FCC - UL - TUV - EMI
Protection: Short circuit, overload, over voltage, over temperature, recover automatically after fault condition are removed.
Others:
- PFC power factor correction circuit.
- ON-OFF remote control.
- Automatic input voltage adjustment.
- Screw terminals.
- Forced air cooling.
- Metal housing with height <40 mm.
DATA SHEET:



POWER SUPPLY AC/DC MEANWELL 500 WATT COMPACT SERIE - SINGLE OUTPUT - FORCED COOLING
